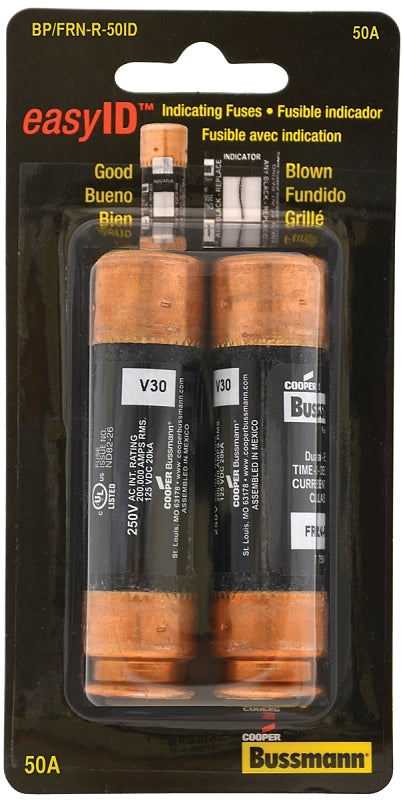

Bussmann BP/FRN-R-50ID Time Delay Fuse, 50 A, 250 V, 20, 200 kA Interrupt
Bussmann series Fusetron cartridge fuses are 23% more energy-efficient and offer the ideal time delay performance. Their...
Vendor:
BUSSMANN
SKU:
7116452
Availability:
Out Of Stock
Product Type:
FUSES-CARTRIDGE/LINKS/ADAPTER
- $28.09
- $28.09
- Unit price
- per
Please hurry! Only 0 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
10 customers are viewing this product
Couldn't load pickup availability
Description
xBussmann series Fusetron cartridge fuses are 23% more energy-efficient and offer the ideal time delay performance. Their dual-element feature allows closer sizing to load for excellent protection of motors and transformers. These Class RK5 fuses with a 200 kA interrupting rating can be used in a broad range of applications. When sized correctly, they help protect motors from burnout caused by overloads or single phasing. The time delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present. In addition, the dual-element design opens in as little as 0.004 secs if the fuse experiences short circuit conditions. All fuses are UL listed Class R (IR: 200 kA). Groove in end cap or notch in knife blade permit the fuse to be used in only Class H, Class K or Class R fuse blocks.
Provides motor overload, ground fault and short circuit protection
Helps protect motors against burnout from overloads
Helps protect motors against burnout from 1-phase on 3-phase systems
Simplifies and improves blackout prevention
Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high-performance, short circuit and overload protection
The overload element provides protection against low level overcurrent of overloads
Offer consumers the additional advantage of blown fuse status that makes finding the open fuse easier and faster
